Thin film evaporation system(Stainless steel)
Thin film evaporation system(Stainless steel)
Stainless steel thin film distillation system is widely used in solvent removal, deodorization and distillation separation in industrial production. The equipment is more integrated, better heat transfer efficiency, and equipped with high-precision automatic feeding and discharging pumps can greatly increase production capacity. It is an ideal choice for pilot and industrial production equipment.
Advantage
Modularized design for flexible options;
Continuous feeding & discharging modules design,saving labor cost and working time;
Fully jacketed design, better material adaptability;
The magnetic coupling seal can maintain a higher vacuum degree to ensure the evaporation effect;
316L stainless steel material, high heat transfer efficiency, safe and reliable;
Sight glass and quick-connect design, easy to disassemble and clean;
Optional gas-liquid separator to reduce material loss;
It is often matched with short-path molecular distillation system or rectification tower to achieve more functions;
Structure

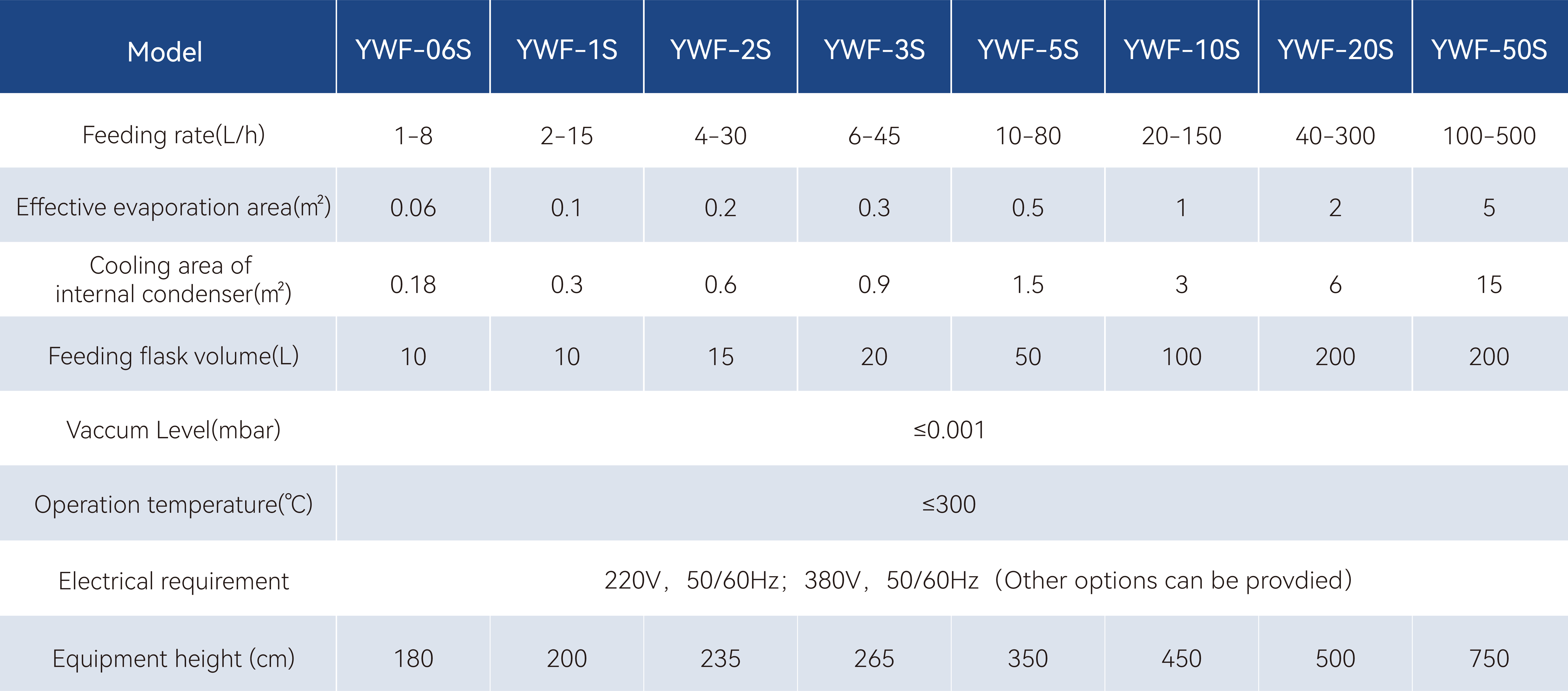

Parameter table
Product application
Service support
Consultation training
24-hour professional consulting service
On site installation training services
24/7 service
Professional process training
Technical support
2 R&D centers
Experienced Chinese and American researchers
Multiple cooperative universities with cutting-edge technology support
