EX-Rotary evaporator

YHchem RE Series Rotary Evaporator is made up of rotary motor, distillation flask, heating bath, condenser,etc. It was used for continuous distillation of volatile solvents under reduced pressure. It is an equipment used for evaporation, concentration, crystallization, drying, separation, solvent recovery, etc. in the scientific research and production process of pharmaceutical, chemical, biological products and other industries. It is also developed based on the principle of constant temperature heating and film evaporation under vacuum and negative pressure.

Advantage

Modular design (individual rotary and bath modules) for extremely easy maintenance and easy future upgrades.

PID temperature controller ensures accurate temperature control.

Easy operation of motor lift , moving up and down smoothly and easy to lock.

Heavy-duty SS304 support frame guarantees vibration-free operation.

Double seal of Teflon (PTFE) and Viton ensures high vacuum.

All parts that come into contact with chemical liquids and gases are made of PTFE and borosilicate glass 3.3 with high corro sion resistance.

Specialized motor with extremely compact, intermeshed worm and gear provides precise driving for very quiet, vibration-freeoperation.

Various options and accessories are available (vacuum pump, chiller, vacuum controller, cold trap, etc).

Structure

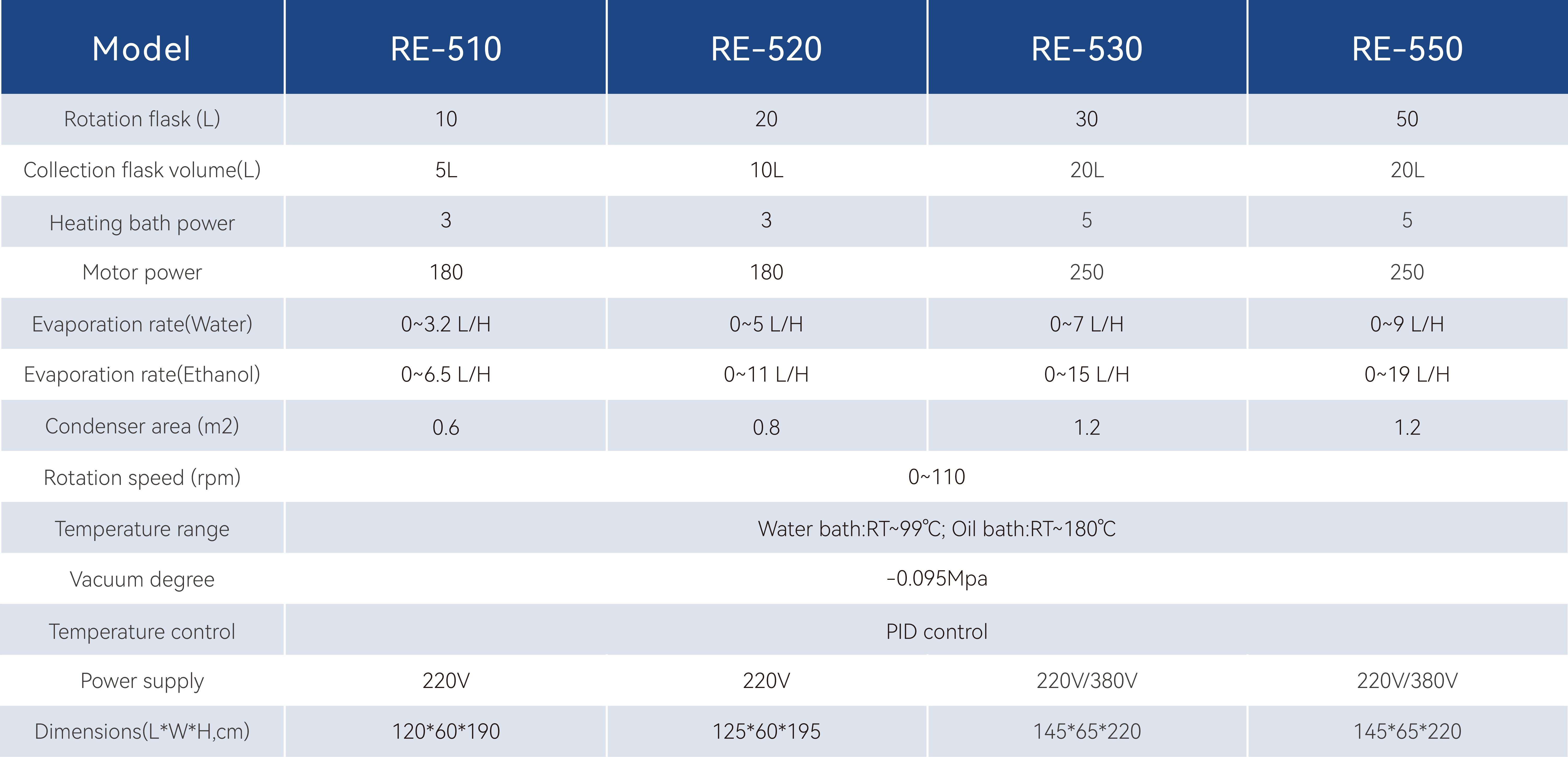

Parameter table

Product application

See more apps

  • Fish Oil

    The crude fish oil is esterified, washed and dehydrated to obtain fish oil and ethyl ester.

    More

  • Vitamin E

    Vitamin E (Vitamin E), also known as tocopherol, is a fat-soluble vitamin and one of the most important antioxidants.

    More

Service support

Consultation training

24-hour professional consulting service

On site installation training services

24/7 service

Professional process training

Technical support

2 R&D centers

Experienced Chinese and American researchers

Multiple cooperative universities with cutting-edge technology support
