Heating Circulator(Enclosed)

YHchem YUC series heating circulator takes oil electric heating system with a totally enclosed structure, which is designed no oil mist volatilization with high temperature, , large flow rate and high lift. The circulating pump outputs the heat-conducting fluid to heat the materials of the supporting equipment, and it is widely used as a combination device in biopharmaceutical, petrochemical, medical and health, food and other industries that need high temperature environment.

Advantage

The temperature can be heated from room temperature to 300 ℃;

Hidden constant temperature method, the temperature uniformity can reach within ±0.5℃;

The temperature control adopts PID method, and with high temperature control accuracy;

Equipped with over-temperature alarm, overload protection and over-current protection functions, which enhances the safety factor of the equipment;

The fully closed circulation system ensures no oil mist at high temperature, prolonging the service life of the heat transfer fluid;

Equipped with a unique oil mist cooling function, which prolongs the service life of the oil while reducing the circulating pressure and increasing the flow;

The temperature of the heat transfer fluid can be quickly adjusted by injecting cooling water to meet the requirements of the process conditions;

The circulation system is made of stainless steel, which is anti-corrosion, anti-pollution, and prolongs the operation period;

Certification: CE.

Structure

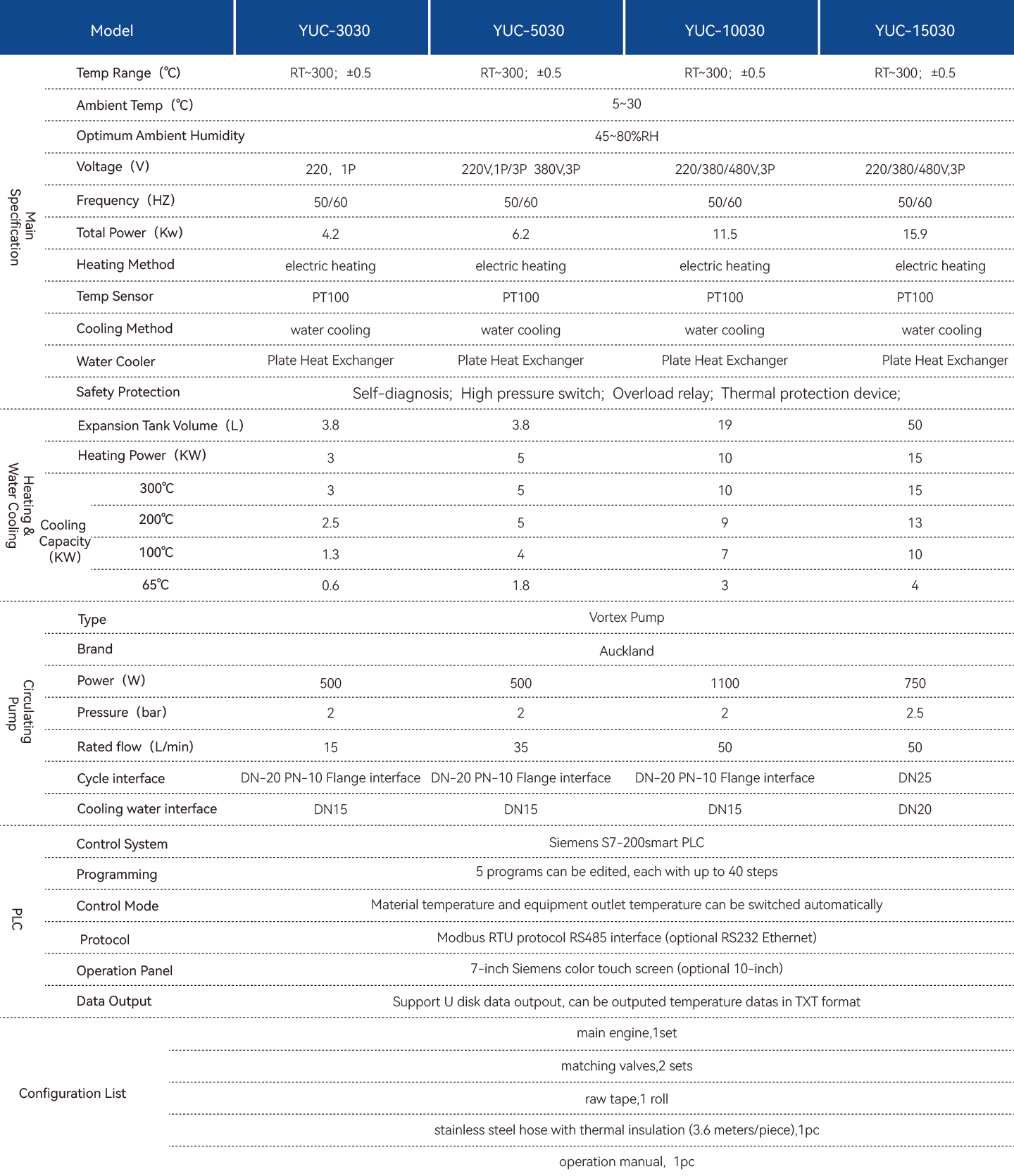

Parameter table
