YWF-50S Thin film evaporation system(stainless steel)

Stainless steel thin film distillation system is widely used in solvent removal, deodorization and distillation separation in industrial production. The equipment is more integrated, better heat transfer efficiency, and equipped with high-precision automatic feeding and discharging pumps can greatly increase production capacity. It is an ideal choice for pilot and industrial production equipment.

Get a quote

Download

Advantage

Modularized design for flexible options.

Continuous feeding & discharging modules design,saving labor cost and working time.

Fully jacketed design, better material adaptability.

The magnetic coupling seal can maintain a higher vacuum degree to ensure the evaporation effect;

316L stainless steel material, high heat transfer efficiency, safe and reliable;

Sight glass and quick-connect design, easy to disassemble and clean.

Optional gas-liquid separator to reduce material loss;

It is often matched with short-path molecular distillation system or rectification tower to achieve more functions;

Certification：UL CE

Structure

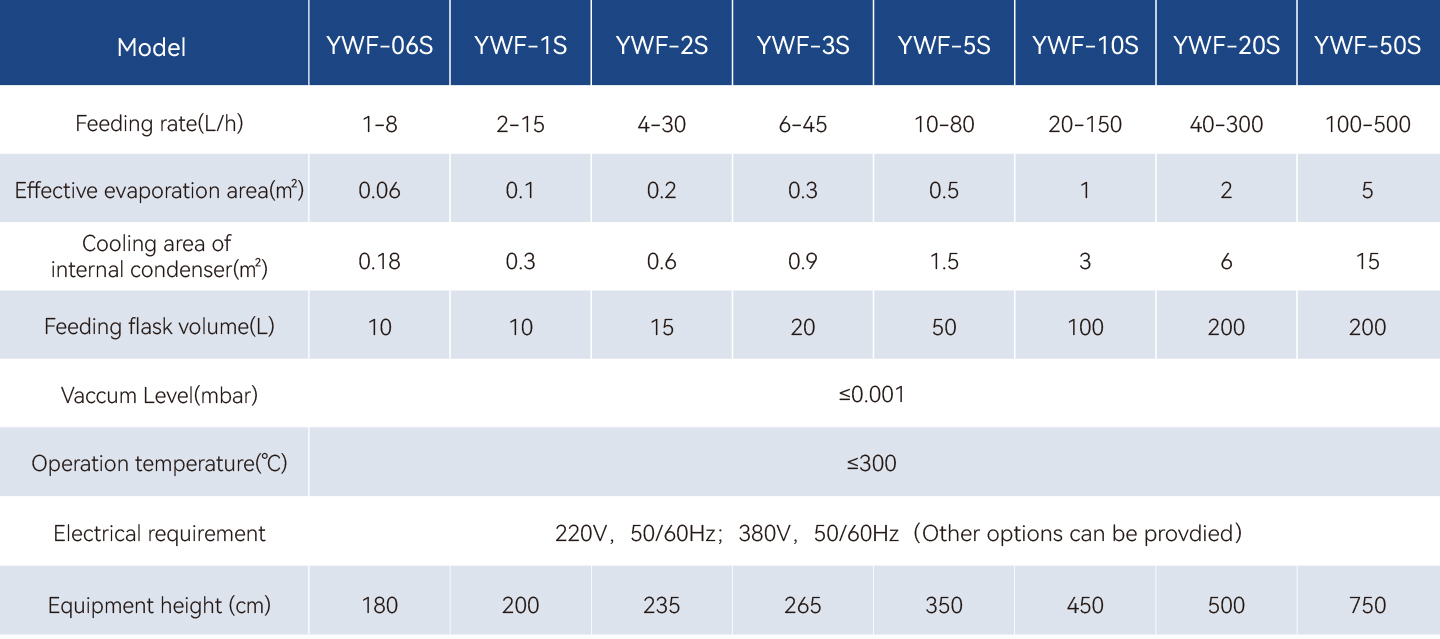

Parameter table

Product application

See more apps

Fish Oil

The crude fish oil is esterified, washed and dehydrated to obtain fish oil and ethyl ester.

More
Vitamin E

Vitamin E (Vitamin E), also known as tocopherol, is a fat-soluble vitamin and one of the most important antioxidants.

More

Service support

Consultation training

24-hour professional consulting service

On site installation training services

24/7 service

Professional process training

Technical support

2 R&D centers

Experienced Chinese and American researchers

Multiple cooperative universities with cutting-edge technology support
